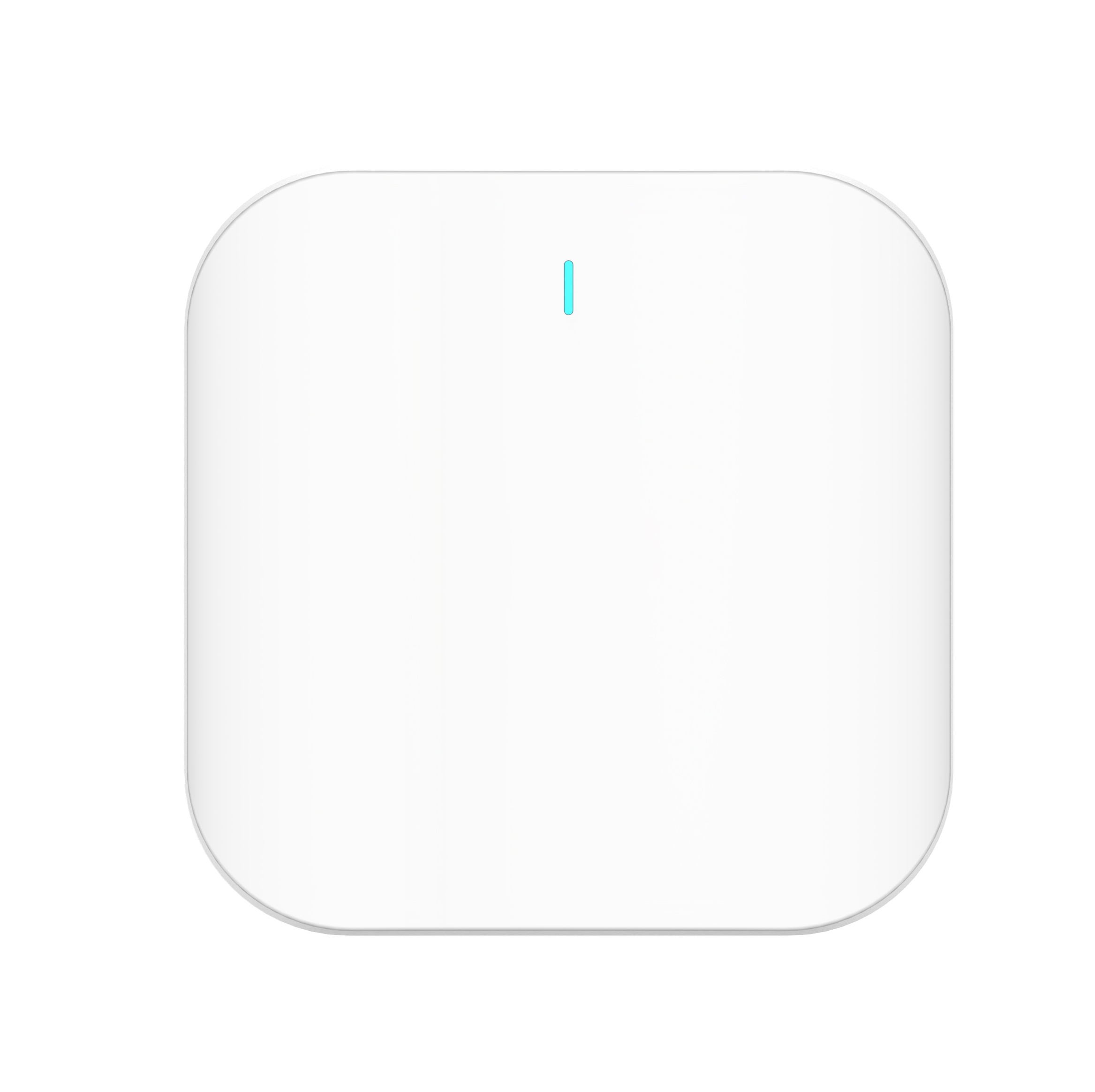

LHD8100

LHD8100 – Triple-Network (4G/WiFi/Ethernet) with ONVIF Camera Integration | CE Certified

is the ultimate alarm panel for installers and security providers, offering triple-network redundancy, Hik-vision/EZVIZ ONVIF camera compatibility, and military-grade encryption. it supports 100 zones, 64 users, and 2 monitoring centers with SMS/voice alerts. OEM/ODM welcomed;

Sales Inquiry

1. Multi-Network Connectivity & Reliability

• Triple-network redundancy: Prioritizes Ethernet, with automatic failover to dual-band WiFi (2.4G/5G) or 4G LTE if primary connections fail.

• 4G LTE support: Includes SMS and voice call alerts during alarms (requires SIM card).

• Robust protocols: Supports AES-128 encryption for secure data transmission.

2. Smart Home & Security Integration

• Wide device compatibility: Manages up to 100 defense zones, 32 remote controllers, and 64 RFID cards.

• Virtual room grouping: Create up to 64 rooms to organize devices (e.g., sensors, sirens) via the mobile app.

• Wireless sub-devices: Supports 868/433MHz RF with 800m open-area range and AES-128 encrypted communication.

3. User-Friendly Mobile Control

• iOS/Android app: Remote arming/disarming, real-time alerts, and device management via QR code setup.

• Bluetooth/WiFi configuration: Easy onboarding with step-by-step app guidance.

• Multi-user access: Up to 64 users/admins with customizable privileges.

4. Professional-Grade Monitoring

• Dual monitoring centers: Supports ADM-CID and SIA-DCS protocols for integration with central stations.

• Real-time notifications: Push alerts, SMS, and voice calls for alarms (intrusion, fire, gas leaks, SOS, etc.).

• Tamper-proof design: Anti-tamper switch triggers alerts if the panel is removed forcibly.

5. Resilient Design & Compliance

• 12-hour backup battery: Ensures operation during power outages.

• Indoor durability: Works in -10°C to 55°C and 5–95% humidity.

• Certified security: Complies with CE, EN50131-2 standards.

6. Advanced Indicators & Customization

• Tricolor LED status lights: Visual feedback for arming (red), disarming (green), and guarding (blue).

• Adjustable brightness: Set via the app.

• OTA updates: Firmware upgrades via LAN/WiFi/4G.

7. Easy Installation & Maintenance

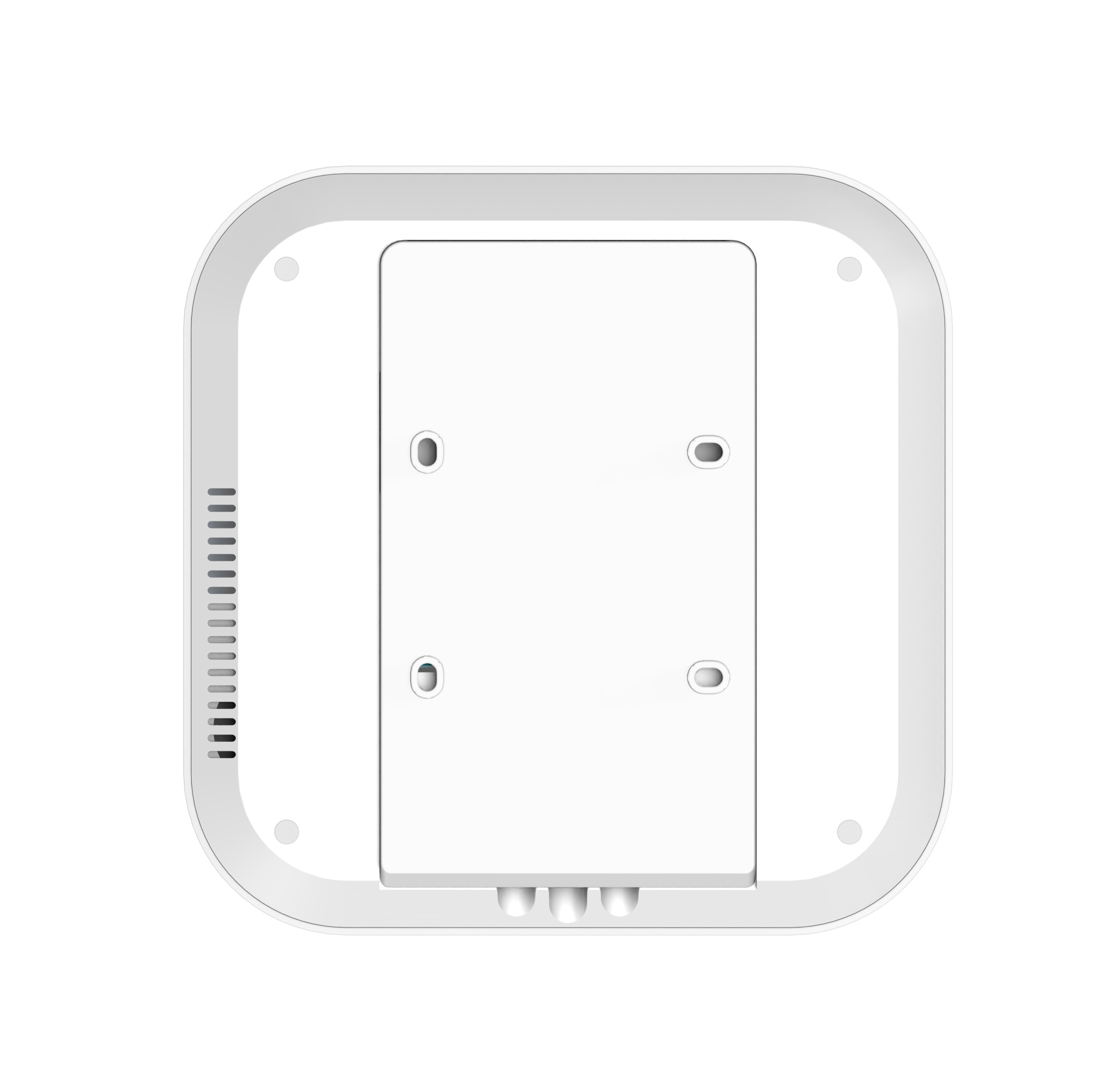

• Wall-mount or adhesive installation: Includes mounting bracket for secure placement.

• Self-testing tools: App-based diagnostics for network and device health.

• 2-year warranty: Includes remote technical support.
